INSTALLATION GUIDE.

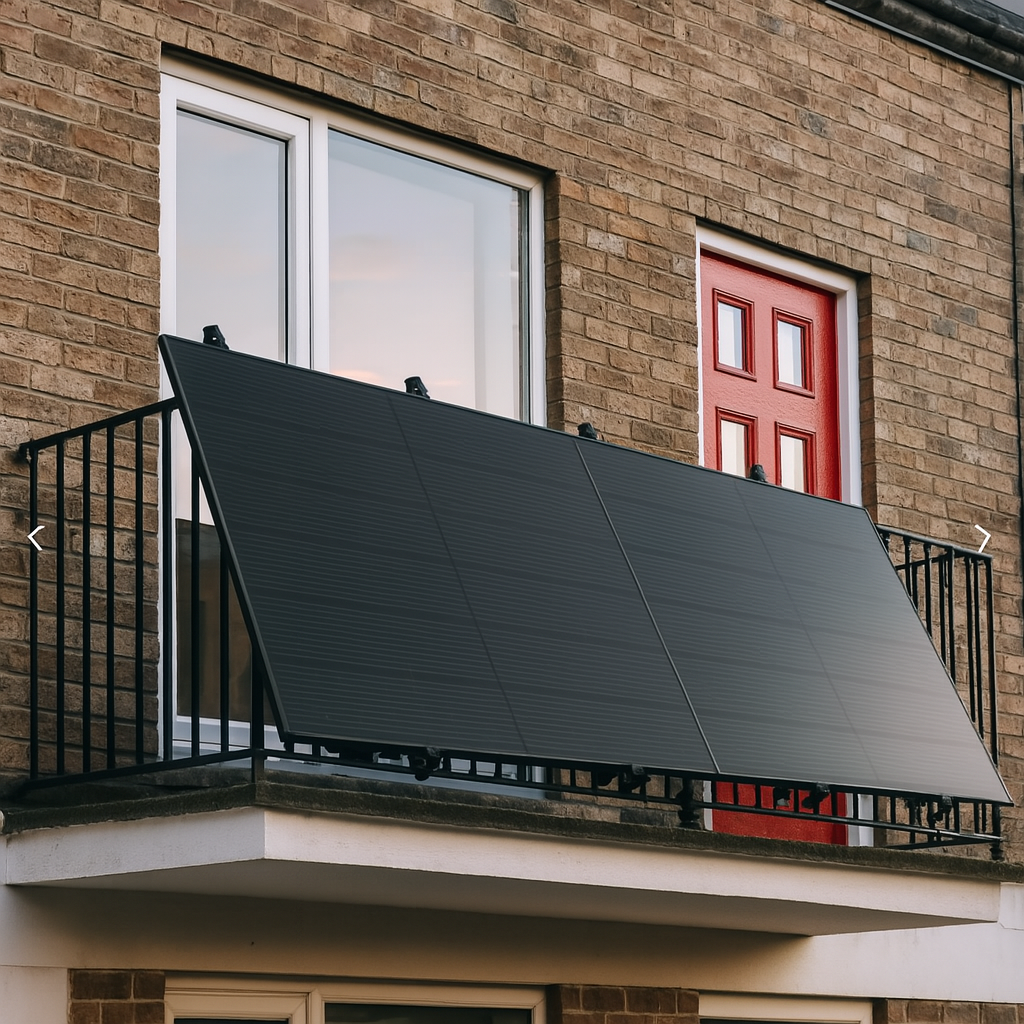

Balcony Solar Power System Installation Guide.

(1–2 Panel System with Microinverter)

This Guide Covers:

• Setting up a secure balcony mount for 1–2 solar panels

• Connecting and installing a microinverter

• Safety, spacing, and positioning tips

• Maintenance and troubleshooting advice

Perfect for renters, homeowners, or solar hobbyists wanting a flexible, balcony-mounted PV setup for energy offset or portable power.

LEGAL DISCLAIMER - All products and content provided by SaveOnWatts are for illustrative and informational purposes only and do not constitute professional installation advice. SaveOnWatts, including its employees, directors, and shareholders, accepts no responsibility or liability for the installation, use, or outcomes of any products purchased. Installation is undertaken at the customer’s own risk, and we strongly recommend consulting a qualified professional where appropriate.

1. Tools & Materials Checklist

You’ll Need (not included):

• Standard socket or wrench set

• Phillips screwdriver

• Measuring tape

• Protective gloves

• Ladder or step stool (if needed

2. System Components (typical):

• 1–2 solar panels (typically 100W–475W each)

• Balcony mounting bracket or rail system

• Microinverter

• AC cable or extension (rated for outdoor use)

• Weatherproof connectors

• Zip ties or cable clips

3. Safety First:

• Ensure your balcony can support at least 70 kg including mounting hardware and panels.

• Use protective gloves during assembly.

• Work in pairs—especially when lifting or placing panels.

• Never modify structural elements like railing or concrete without proper assessment.

• Turn off power at your main panel before connecting to grid (if applicable).

4. Step-by-Step Installation:

a. Assess Your Balcony Space

• Check dimensions and sun exposure (south-facing is best in northern hemisphere).

• Ensure balcony railing or surface is strong and stable.

• Verify the distance to the nearest outlet or grid tie-in point (if using a plug-in microinverter).

b. Mount the Bracket System

• Assemble and secure the solar panel mounting bracket to the balcony railing or wall.

• Use provided clamps or brackets rated for outdoor use.

• Make sure the panels can tilt at an optimal solar angle (usually 25°–40° depending on location)

c. Install Solar Panels

• Carefully lift and place the panels onto the mount.

• Attach using the provided fasteners or clamps.

• Leave space between panels for airflow and maintenance access.

• Check for any wobble or instability—tighten connections as needed.

d. Connect the Microinverter

• Attach the microinverter to the back of the solar panel or the frame, using brackets.

• Connect the solar panel’s DC leads to the microinverter input (observe polarity).

• Connect the AC output cable from the microinverter to a weatherproof socket, junction box, or extension cord.

• TIP: Use a plug-in energy monitor to track real-time generation.

e.  Routing and Securing Cables

• Use UV-resistant zip ties or cable clips to route and secure all cables.

• Keep cables elevated and avoid water pooling areas.

• If plugging into an outlet, ensure it's outdoor-rated and GFCI-protected.

f.  Testing and Activation

• Confirm all connections are secure.

• Power on the system (if plug-and-play) or wait for the microinverter to sync with the grid.

• Check LED indicators or use the microinverter app/monitor to verify generation.

5. Maintenance Tips:

• Inspect all mechanical connections every 3–6 months.

• Clean solar panel surfaces with soft water and a non-abrasive cloth.

• Re-tighten bolts and check for corrosion.

• Review local regulations if planning to expand the system.

6. Compliance & Grid Connection:

• In many countries, plug-in solar systems must comply with specific grid feed-in rules.

• Always check with your local energy authority for permitted devices and configurations.

• Some regions allow simple plug-and-play microinverters; others require professional sign-off.
